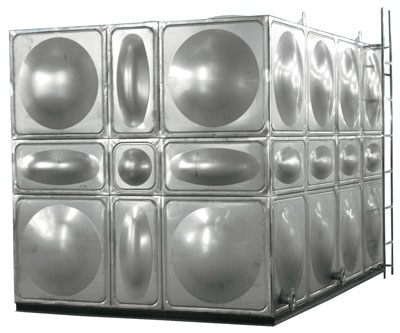

L&L Rectangular Panel Tank

Advantages of Stainless Steel Panel Tank:-

  1. Specially design and custom made for any site and space requirement. Zero space wastage.
  2. Specially design and custom made for easier maintenance and cost saving.
  3. Specially design and made from Stainless Steel Grade 316, 304, 202, 200. Corrosion resistant and anti rust.
  4. Specially design and custom made of materials Stainless Steel, fullfil food grade non magnetic, not contain of mercury and zinc. Healthy and Green environment.
  5. Specially design and custom made of materials Stainless Steel, Strengthen capability, lasting and long life.

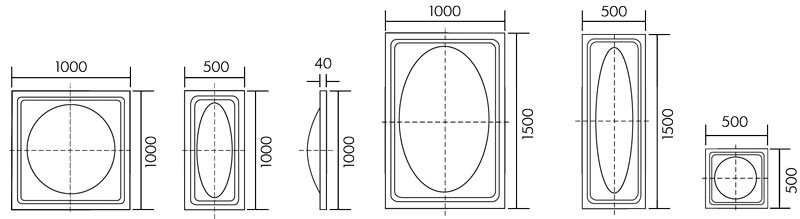

Stainless Steel Panel Specification:

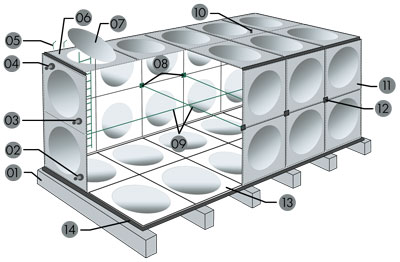

Tank Construction Details:

Water Tank Details:

  1. Concrete Foundation
  2. Water Outlet
  3. Discharge Port
  4. Overflow Port
  5. Outer Staircase
  6. Water Tank Manhole
  7. Manhole Cover
  8. Inner Support Plate
  9. Support Rod
  10. Airhole
  11. Side Panel
  12. Outer Support Plate
  13. Backplane
  14. Steel Frame

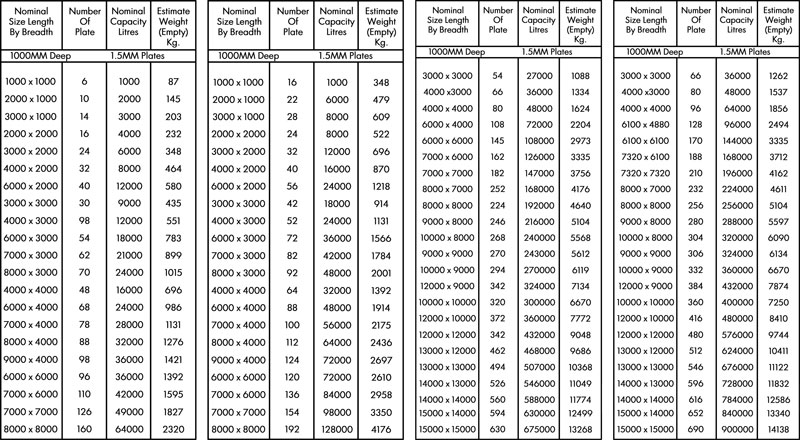

Table for typical size approximate weights and nominal capacity of rectangular tank
